Silo Cleaning Systems
Silo cleaning systems are specialized systems used to maximize the efficiency of storage silos that hold bulk powders or granules. In silos, material is fed through the top and removed from the bottom. Typical silo applications include animal feed, industrial powders, cement, and pharmaceuticals.
Free movement of stored materials, on a first-in, first-out basis, is essential in maximizing silo efficiency. The goal of silo efficiency is to ensure that oldest material is used first and does not contaminate newer, fresher material. Two main problems, rat holing and bridging, complicate silo efficiency. When rat holing occurs, powders adhere to the sides of silos. Bridging occurs when material blocks at the silo base.
Manual cleaning, by lowering a worker on a rope to free material, is the simplest way to clean silos. However, manual cleaning is dangerous due to the release of material and the possible presence of gases. In cases of bridging, an additional danger exists as the exit hole needs to be rodded from underneath, exposing the worker to falling powder.
Alternative cleaning methods include:
- Air Blasters are a well established cleaning method. Air cannons are expensive, however, as limited coverage requires purchase of multiple units. Air cannons are also noise intrusive and require high consumption of compressed air.
- Vibrators are easy to fit into empty silos, but can cause structural damage and contribute to powder compaction.
- Low friction liners are quiet, but expensive to install and prone to erosion which can then contaminate the environment or product.
- Inflatable Pads are easy to install in empty silos and can help side wall build up but have no effect on bridging. Inflatable pads and liners are also hard to maintain and can cause compaction.
- Fluidization Pads can help compacted material, but are expensive and difficult to install and maintain. These systems can also contribute to mechanical interlocking and bridging.
- Acoustic Cleaners are the latest and possibly safest way to clean silos as these systems are non-invasive and do not require silos to be emptied. Acoustic cleaning are also a preventative solution.

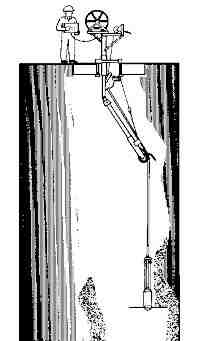

- Scraper Systems are machines used to "cut" build up on the walls of silos.
