Sanitary Belt Conveyors
Jump to navigation
Jump to search

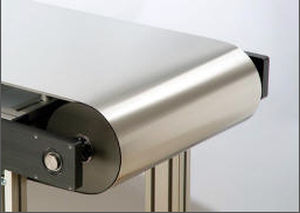

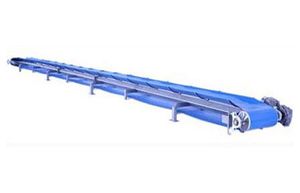

Sanitary Belt Conveyors are a cost-effective solution with a design than lends itself to easy cleaning and maintenance.They are available in a wide range of sizes and configurations to accommodate the inspection, storing or transporting of product.
Features
- All stainless steel, continuously welded frame construction.
- Cantilevered support structure allows easy belt removal from one side of the conveyor.
- Stainless steel machined pulleys with optional drive pulley lagging available.
- All bearings have corrosion resistant housings and are lubed/sealed for life.
- Tail pulley assembly includes quick release take-ups with tracking adjustment.
- Drive options include motorized pulley, shaft mounted gear motors, timing belt or chain drive.
- Belting material is selected based on the application.
- Conveyor can be supported with portable cart with locking casters, fixed framework with adjustable ball feet, or from overhead suspension.
- Optional cable switches available.
- Return idler pulleys are removable for cleaning or maintenance.
- Conveyors can be mounted horizontally, inclined or declined.
