Rotary Airlocks

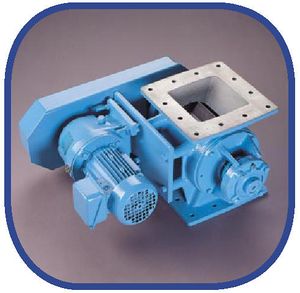

Rotary Airlocks also known as rotary feeders or Rotary Valves, are commonly used in industrial and agricultural applications as a component in a bulk or specialty material handling system. Rotary airlocks are primarily used for discharge of bulk solid material from hoppers or bins, receivers, and cyclones into a pressure or vacuum-driven pneumatic conveying system. Components of a rotary feeder include a rotor shaft, housing, head plates, and packing seals and bearings. Rotors have large vanes cast or welded on and are typically driven by small internal combustion engines or electric motors.
Use
Rotary airlocks have wide application in industry wherever dry free-flowing powders, granules, crystals, or pellets are used. Typical materials include: cement, ore, sugar, minerals, grains, plastics, dust, fly ash, flour, gypsum, lime, coffee, cereals, pharmaceuticals, etc. Industries requiring this type include cement, asphalt, chemical, mining, plastics, food, etc. Rotary feeders are ideal for pollution control applications in wood, grain, food, textile, paper, tobacco, rubber, and paint industries, the Standard Series works beneath dust collectors and cyclone separators even with high temperatures and different pressure differentials.
Rotary valves are available with square or round inlet and outlet Flanges. Housing can be fabricated out of sheet material or cast. Common materials are cast iron, carbon steel, 304 SS, 316 SS, and other materials. Rotary airlock are often available in standard and heavy duty models, the difference being the head plate and bearing configuration. Heavy duty models use an outboard bearing in which the bearings are moved out away from the head plate. Housing inlet and discharge configurations are termed drop-thru or side entry. Different wear protections are available such as hard chrome or ceramic plating on the inner housing surfaces. Grease and air purge fittings are often provided to prevent contaminants from entering the packing seals.
Uses
Rotary airlock
The basic use of the rotary airlock feeder is as an airlock transition point, sealing pressurized systems against loss of air or gas while maintaining a flow of material between components with different pressure and suitable for air lock applications ranging from gravity discharge of filters, Rotary Valves, cyclone dust collectors, and rotary airlock storage devices to precision feeders for dilute phase and continuous dense phase pneumatic convey systems.
Rotary valve
Rotary airlock feeders or Rotary Airlock Valves are used in pneumatic conveying systems, dust control equipment, and as volumetric feed-controls.
Volumetric feeder
Rotary airlock valves are also widely used as volumetric feeders for metering materials at precise flow rates from bins, hoppers, or silos onto conveying or processing systems.
Types
Rotary airlock feeders
Drop through rotary airlock feeders are designed for rugged applications that require an outboard bearing style unit where contamination and /or an abrasive product cannot be handled with an inboard bearing style. The outboard bearing feeders is engineered for use in high pressure pneumatic conveying systems, with high temperatures where more of an effective seal is required due to high or excessive wear that is experienced with a simple dust collector.
Blow-thru rotary airlock feeder
The blow-thru rotary airlock feeder is ideal for pneumatic conveying applications in food, grain, chemical, milling, baking, plastics and pharmaceutical industries. The blow-thru airlocks feature a low profile with large capacity. High pressure differentials integral mounting feet, and retrofit competitive units. The blow-thru valves are available with 10-vane open-end rotor; outboard bearings and replaceable shaft seals.
Easy clean rotary feeder
The easy-clean series rotary feeders can be fast and simply disassembled, thoroughly quick cleaned, sanitized and inspected or maintenance in a minimum amount of time without the use of tools or removal from service, thereby reducing downtime and increasing system production. Reassembly without tools is accomplished in minutes. Internal clearances are automatically re-established every time.
The clean-in-place rotary feeder is a special purpose valve designed for where cross-contamination is a major concern and lengthy shut-downs for clean-out are cost-prohibitive, suited for dairy, pharmaceutical industries, food, baking, chemical, plastics, paint, and powder coating plants.It is ideal for batch mixing systems such as those handling different colored resins which demand regular cleaning between cycles.
Filter valve
The filter valve is a low-cost solution designed for light duty dust collector applications.
Knife rotary feeder
This type of feeder is used for discharge of secondary fuel as for example: plastics or wood. The knife is cutting the oversize material and is preventing the rotor from blockage.
