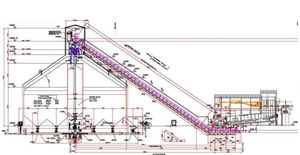

Pan Conveyors
Pan Conveyors are conveyors consisting of a series of pans.Pan conveyors are designed to meet material handling requirements, convey material both horizontally and up to 60 degrees inclination. Various designs of pans are available to meet any application requirements. The pan design incorporates precision formed overlapping steel pans with lip contact between adjacent pans and between adjacent side plates of pans. Spillage is minimized even at steep inclines or when the pans articulate over the head or tail shafts. This design of pans is ideally suited for handling hot clinker in the cement plants or for conveying materials from fines to 150 mm lump size. The deep bucket conveyors are offered for handling materials up to 60 deg. steep inclination. Pan Conveyors mainly for the superior strength with long service as proved to be the most demanding in material Handling.
Features
- Lifting heights beyond to 60 m
- Conveying capacities up to 1200 m³/h
- Inclination up to to 60°
- For coarse and hot bulk materials
- Pin and bush link chain available as central chain or double chain
