Dry Cleaners
Dry cleaning is any cleaning process for clothing and textiles using a chemical solvent other than water. The solvent used is typically tetrachloroethylene (perchloroethylene), which the industry calls "perc" or "PERC". It is used to clean delicate fabrics that cannot withstand the rough and tumble of a washing machine and clothes dryer; it can also eliminate labor-intensive hand washing.
History
The ancient Romans used ammonia (derived from urine) and fuller's earth to launder their woolen togas. Fullonicae were very prominent industrial facilities, with at least one in every town of any notability, and frequently the largest employer in a district. These laundries obtained urine from farm animals, or from special pots situated at public latrines. The industry was so profitable that fuller's guilds were an important political constituency, and the government taxed the collection of urine.
Modern dry cleaning uses non-water-based solvents to remove soil and stains from clothes. The potential for using petroleum-based solvents such as gasoline and kerosene was discovered in the mid-19th century by French dye-works owner Jean Baptiste Jolly, who noticed that his tablecloth became cleaner after his maid spilled kerosene on it. He subsequently developed a service cleaning people's clothes in this manner, which became known as "nettoyage à sec"—i.e., dry cleaning.
Flammability concerns led William Joseph Stoddard, a dry cleaner from Atlanta, to develop Stoddard solvent as a slightly less flammable alternative to gasoline-based solvents. The use of highly flammable petroleum solvents caused many fires and explosions, resulting in government regulation of dry cleaners. After World War I, dry cleaners began using chlorinated solvents. These solvents were much less flammable than petroleum solvents and had improved cleaning power.
Process

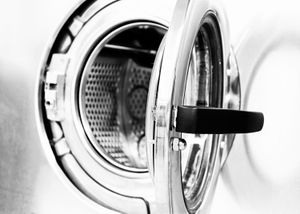

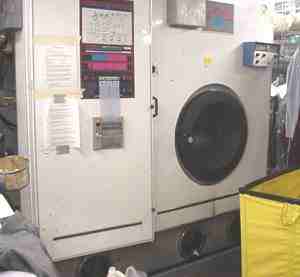

A dry-cleaning machine is similar to a combination of a domestic washing machine, and clothes dryer. Garments are placed in the washing or extraction chamber (referred to as the "basket" or "drum"), which constitutes the core of the machine. The washing chamber contains a horizontal, perforated drum that rotates within an outer shell. The shell holds the solvent while the rotating drum holds the garment load. The basket capacity is between about 10 and 40 kg (20 to 80 lb).
During the wash cycle, the chamber is filled approximately one-third full of solvent and begins to rotate, agitating the clothing. The solvent temperature is maintained at 30 degrees Celsius (86 degrees Fahrenheit), as a higher temperature may damage it. During the wash cycle, the solvent in the chamber (commonly known as the "cage" or "tackle box") is passed through a filtration chamber and then fed back into the "cage". This is known as the cycle and is continued for the wash duration. The solvent is then removed and sent to a distillation unit consisting of a boiler and condenser. The condensed solvent is fed into a separator unit where any remaining water is separated from the solvent and then fed into the "clean solvent" tank. The ideal flow rate is roughly 8 liters of solvent per kilogram of garments per minute, depending on the size of the machine.
Garments are also checked for foreign objects. Items such as plastic pens will dissolve in the solvent bath and may damage textiles beyond recovery. Some textile dyes are "loose" (red being the main culprit), and will shed dye during solvent immersion. These will not be included in a load along with lighter-color textiles to avoid color transfer. The solvent used must be distilled to remove impurities that may transfer to clothing. Garments are checked for dry cleaning compatibility, including fasteners. Many decorative fasteners either are not solvent proof or will not withstand the mechanical action of cleaning. These will be removed and restitched after the cleaning, or protected with a small padded protector. Fragile items, such as feather bedspreads or tasseled rugs or hangings, may be enclosed in a loose mesh bag. The density of perchloroethylene is around 1.7 g/cm3 at room temperature (70% heavier than water), and the sheer weight of absorbed solvent may cause the textile to fail under normal force during the extraction cycle unless the mesh bag provides mechanical support.
Not all stains can be removed simply by dry cleaning. Some need to be treated with spotting solvents—sometimes by steam jet or by soaking in special stain-remover liquids—before garments are washed or dry cleaned. Also, garments stored in soiled condition for a long time are difficult to bring back to their original color and texture. Natural fibers such as wool, cotton, and silk of lighter colors should not be left in dirty or soiled condition for long amounts of time as they absorb dirt in their texture and are unlikely to be restored to their original color and finish. A typical wash cycle lasts for 8–15 minutes depending on the type of garments and degree of soiling. During the first three minutes, solvent-soluble soils dissolve into the perchloroethylene and loose, insoluble soil comes off. It takes 10-12 minutes after the loose soil has come off to remove the ground-in insoluble soil from garments. Machines using hydrocarbon solvents require a wash cycle of at least 25 minutes because of the much slower rate of solvation of solvent-soluble soils. A dry cleaning surfactant "soap" may also be added.
At the end of the wash cycle, the machine starts a rinse cycle wherein the garment load is rinsed with fresh distilled solvent from the pure solvent tank. This pure solvent rinse prevents discoloration caused by soil particles being absorbed back onto the garment surface from the "dirty" working solvent. After the rinse cycle, the machine begins the extraction process, which recovers the solvent for reuse. Modern machines recover approximately 99.99% of the solvent employed. The extraction cycle begins by draining the solvent from the washing chamber and accelerating the basket to 350-450 rpm, causing much of the solvent to spin free of the fabric. Until this time, the cleaning is done in normal temperature, as the solvent is never heated in dry cleaning process. When no more solvent can be spun out, the machine starts the drying cycle.
During the drying cycle, the garments are tumbled in a stream of warm air (60-63°C/140-145°F) that circulates through the basket, evaporating any traces of solvent left after the spin cycle. The air temperature is controlled to prevent heat damage to the garments. The exhausted warm air from the machine then passes through a chiller unit where solvent vapors are condensed and returned to the distilled solvent tank. Modern dry cleaning machines use a closed-loop system in which the chilled air is reheated and recirculated. This results in high solvent recovery rates and reduced air pollution. In the early days of dry cleaning, large amounts of perchlorethylene were vented to the atmosphere because it was regarded as cheap and believed to be harmless.
After the drying cycle is complete, a deodorizing (aeration) cycle cools the garments and removes the last traces of solvent, by circulating cool outside air over the garments and then through a vapor recovery filter made from activated carbon and polymer resins. After the aeration cycle, the garments are clean and ready for pressing and finishing.
Solvent Processing
Working solvent from the washing chamber passes through several filtration steps before it is returned to the washing chamber. The first step is a button trap, which prevents small objects such as lint, fasteners, buttons, and coins from entering the solvent pump.
Over time, a thin layer of filter cake (called "muck") accumulates on the lint filter. The muck is removed regularly (commonly once per day) and then processed to recover solvent trapped in the muck. Many machines use "spin disk filters", which remove the muck from the filter by centripetal force while it is back washed with solvent.
After the lint filter, the solvent passes through an absorptive cartridge filter. This filter is made from activated clays and charcoal and removes fine insoluble soil and non-volatile residues, along with dyes from the solvent. Finally, the solvent passes through a polishing filter, which removes any soil not previously removed. The clean solvent is then returned to the working solvent tank.
To enhance cleaning power, small amounts of detergent (0.5%-1.5%) are added to the working solvent and are essential to its functionality. These detergents emulsify hydrophobic soils and keep soil from redepositing on garments. Depending on the machine's design, either an anionic or a cationic detergent is used. Since the solvent recovery is less than 100%, and because dry cleaning does not remove water-based stains well, entrepreneurs have developed the wet cleaning process, which is, in essence, cold-water washing and air drying, using a computer-controlled washer and dryer. In general, wet cleaning is regarded as being in its infancy, although low-tech versions of it have been used for centuries.
Solvent Used
Glycol ethers
Glycol ethers (dipropylene glycol tertiary-butyl ether) (Rynex, Solvair, Lyondell Impress) are in many cases more effective than perchloroethylene (perc) and in all cases more environmentally friendly. Dipropylene glycol tertiary butyl ether (DPTB) has a flashpoint far above current industry standards, yet at the same time possesses a degree of solvency for water-soluble stains that is at least equivalent to, and in most cases better than, perc and the other glycol ether dry cleaning solvents presently in commercial use. A particular advantage of the DPTB-water solutions of the Rynex product in dry cleaning is that they do not behave like a typical mixture, but, rather, the behavior is the same as a single substance. This permits a better-defined separation upon azeotropic distillation at a lower boiling point, facilitates reclamation more effectively (at a level of 99% or greater), and also enhances purification using conventional distillation techniques.
Hydrocarbon
Hydrocarbon is most like standard dry cleaning but the processes use hydrocarbon solvents such as Exxon-Mobil's DF-2000 or Chevron Phillips' EcoSolv. These petroleum-based solvents are less aggressive than perc and require a longer cleaning cycle. While flammable, these solvents do not present a high risk of fire or explosion when used properly. Hydrocarbon also contains volatile organic compounds (VOCs) that contribute to smog.
Liquid silicone
Liquid silicone (decamethylcyclopentasiloxane or D5) is gentler on garments than perc and does not cause color loss. Requires a license be obtained to utilize the property of GreenEarth Cleaning. Though considerably more environmentally friendly, the price of it is more than double that of perc and GreenEarth charges an annual affiliation fee. Degrades within days in the environment to silica and trace amounts of water and CO2. Produces nontoxic, nonhazardous waste. Toxicity tests by Dow Corning shows the solvent to increase the incidence of tumors in female rats (no effects were seen in male rats), but further research concluded that the effects observed in rats are not relevant to humans because the biological pathway that results in tumor formation is unique to rats. (170.6 °F/77 °C flash point).
Perchloroethylene
Perchloroethylene has been in use since the 1940s, perc is the most common solvent, the "standard" for cleaning performance, and most aggressive cleaner. It can cause color bleeding/loss, especially at higher temperatures, and may destroy special trims, buttons, and beads on some garments. Better for oil-based stains (which account for about 10% of stains) than more common water-soluble stains (coffee, wine, blood, etc.). Known for leaving a characteristic chemical smell on garments. Nonflammable. A recent study conducted at Georgetown University shows perc, classified as carcinogenic to humans by the EPA, is retained in dry-cleaned clothes and that levels increase with repeat cleanings.
Liquid CO2
Consumer Reports rated this method superior to conventional methods, but the Drycleaning and Laundry Institute commented on its "fairly low cleaning ability" in a 2007 report.[14] Another industry certification group, America's Best Cleaners, counts CO2 cleaners among its members. Machinery is expensive—up to $90,000 more than a perc machine, making affordability difficult for small businesses. Some cleaners with these machines keep traditional machines on-site for the heavier soiled textiles, but others find plant enzymes to be equally effective and more environmentally sustainable. CO2-cleaned clothing does not off-gas volatile compounds. CO2 cleaning is also used for fire- and water-damage restoration due to its effectiveness in removing toxic residues, soot and associated odors of fire. The environmental impact is very low. Carbon dioxide is almost entirely nontoxic, it does not persist in clothing or in the environment, and its greenhouse gas potential is lower than that of many organic solvents.
