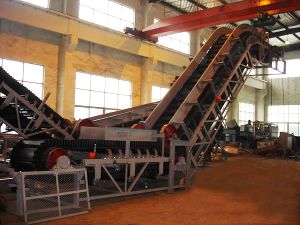

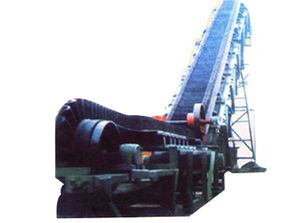

Corrugated Belt Conveyors
Corrugated Belt Conveyorsare Conveyor Belts with wave-shape wall, generally together with the Corrugated Sidewall Belts in use.Compared with the belt manufactured through adhesion technique, stronger adhesion strength, excellent flex cracking resistant, not easy to produce the phenomenon of cracking and/or sheding of the sidewall and/or the horizontal block when in use, and accordingly largely lengthen its service life.
Features
- Be competent to convey materials at big inclination angle, generally no less than 30°.
- Made up of Base Band , Sidewall, and Transversal Block.
- This kind of conveyor belt twice experiences the sulfuration.
- Those shapes of the transversal block that the factory could provide comprise T type, C type, TC type, etc.
Working Principle
The material is fed onto the belt at the loading point. The conveyor is fitted with a pre-conveyor, or silo, which in combination with a weighing system determines the amount of material that is fed onto the corrugated belt conveyor.
At the outlet the material is discharged from the pockets thanks to its self-weight, centrifugal force and rapper pulley.
Benefits
- Easy to integrate in existing plants
- Vertical conveyance
- Minimal dust formation due to flexible conveyor configuration
- Flexibility allows for material discharge from the conveyor at the outlet
- Environmentally secure system:protects the material conveyed
- Material which falls from the downhill conveyor is lifted by a cleat and sent back to the uphill conveyor
